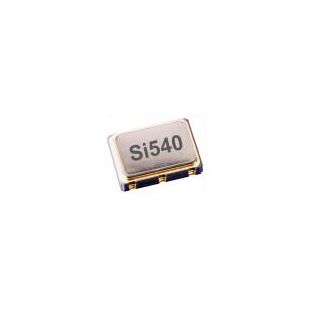

更多>>Skyworks振蕩器,540BBA50M000ACG,6G模塊晶振
- 頻率：50MHz
- 尺寸：7.0×5.0mm
- 應 用： Skyworks振蕩器,Si540貼片石英晶振,540BBA50M000ACG晶振,7050mm晶振,進口有源晶振,LVDS差分晶振,頻率50MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,超低抖動晶振,低電源電壓晶振,6G模塊晶振,網絡系統晶振,服務器...
-
-
Skyworks振蕩器,540BBA50M000ACG,6G模塊晶振,Skyworks振蕩器,Si540貼片石英晶振,540BBA50M000ACG晶振,7050mm晶振,進口有源晶振,LVDS差分晶振,頻率50MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,超低抖動晶振,低電源電壓晶振,6G模塊晶振,網絡系統晶振,服務器和存儲系統晶振,移動應用晶振.
Skyworks振蕩器,540BBA50M000ACG,6G模塊晶振特點：
•可與任何頻率從0.2MHz ~ 1500mhz
•超低抖動:80 fs類型RMS(12 kHz - 20 MHz)
•出色的PSNR和電源抗噪性:-80 dBc類型
•7 ppm穩定性選項(-40至85°C)
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和雙CMOS輸出選項
•2.5×3.2、3.2×5、5×7 mm包裝選項
•樣品交付周期為1-2周
Skyworks振蕩器,540BBA50M000ACG,6G模塊晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 50MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±25 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 111mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.275V Max |
|
| VO | 1.0Vpp Max | ||
| 輸入電壓 | VIH | 70%VDD Min |
|
| VIL | 30%VDD Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 3ms Max | |
| 相位抖動 | tpj | 200fs Max |
Differential Formats
|
.jpg)

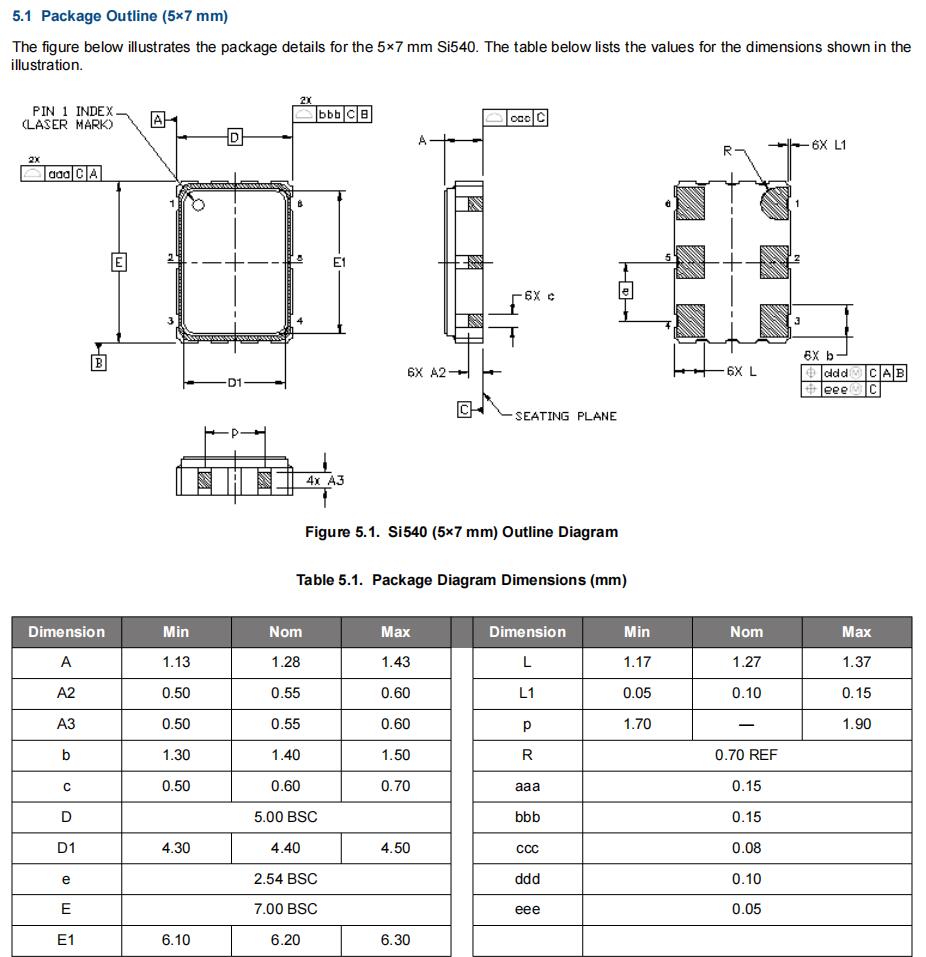

Skyworks振蕩器,540BBA50M000ACG,6G模塊晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 540BAA000274BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA156M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540BAA125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA122M880BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540DAA156M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 156.25 MHz | CML | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA000244BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BCA000127BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm |
| 540BAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA114M285BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 114.285 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA122M880BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA125M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA24M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA25M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA48M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA50M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAC100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAC70M6560BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540BAA106M250BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA125M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA38M400BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA70M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA70M6560BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA80M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA96M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAC116M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAC70M6560BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA100M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA10M2300BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10.23 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA125M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA20M9715BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 20.9715 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA25M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA38M400BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA48M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA52M4288BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 52.4288 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA8M00000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 8 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA9M93125BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 9.93125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA9M96125BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 9.96125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB24M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB48M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAC70M6560BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA27M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540FAA10M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540FAA25M0000BAGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA122M880BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA50M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540CAC50M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540CAA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA10M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540AAA122M880BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540BAA106M250BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA80M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA27M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BBA125M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm |
| 540BBA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm |
| 540ABC121M109ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 121.109 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
| 540ABA25M0000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
| 540ABA25M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
| 540BBA100M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540ABC25M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
| 540CBA25M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA125M000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540ABA74M1758ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 74.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
| 540ABA78M1758ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 78.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
| 540BBA33M3330BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA100M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540EBC27M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA100M000ABGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA100M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540BBA125M000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540EBC27M0000BBGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm |
| 540CCA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540EAA103M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 103 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm |
| 540CAA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB12M1230BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 12.123 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540DAC25M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CML | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CCB12M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 12 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±7ppm |
| 540EAA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540DAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CML | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540ACA74M2500BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 74.25 MHz | LVPECL | 2.5V, 3.3V | ±7ppm |
| 540CAA27M0950BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 27.095 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540HAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA100M000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA70M6560BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540AAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm |
| 540CAC50M0000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm |
| 540BAA125M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540EAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm |
| 540BAA106M250BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540BAA100M000BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540EAA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm |
| 540DAA100M000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm |
| 540CAA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm |
| 540AAA000169BCG | Skyworks Solutions Inc. | Ultra™ Si540 | 19.53125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm |
| 540CCA12M2880CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 12.288 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540CCA27M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540BAB20M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540CBA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm |
| 540BCA25M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm |
| 540CBA12M2880CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 12.288 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm |
| 540CAB10M0000ACG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm |
| 540CBA27M0000CCG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm |
| 540CAA38M400BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 38.4 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA48M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA52M4288BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 52.4288 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA8M00000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 8 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA9M93125BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 9.93125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA9M96125BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 9.96125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB125M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB24M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 24 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAB48M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAC70M6560BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000ABG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540EAA27M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540FAA10M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540FAA25M0000BAG | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAA100M000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA50M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540EAA27M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA106M250BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540CAC50M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540AAA10M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 540BAA80M0000BBG | Skyworks Solutions Inc. | Ultra™ Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 540BAA70M6560BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540CAC50M0000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 50 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm |
| 540AAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm |
| 540BAA125M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540EAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm |
| 540BAA100M000BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540EAA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | HCSL | 1.8V ~ 3.3V | ±20ppm |
| 540BAA106M250BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm |
| 540DAA100M000ACGR | Skyworks Solutions Inc. | Ultra™ Si540 | 100 MHz | CML | 1.8V ~ 3.3V | ±20ppm |
| 540AAA000169BCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 19.53125 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm |
| 540CCA27M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 27 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540CAA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm |
| 540CCA12M2880CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 12.288 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540CBA12M2880CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 12.288 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm |
| 540CCA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm |
| 540BCA25M0000CCGR | Skyworks Solutions Inc. | Ultra™ Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.zjdy-game.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
.jpg)
