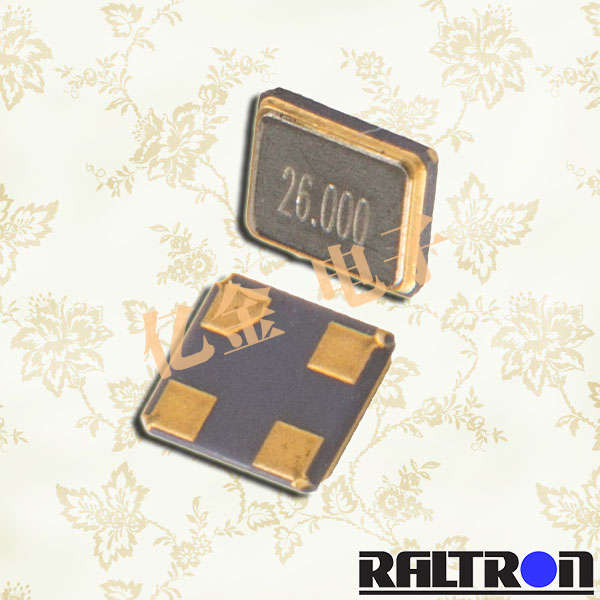

歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振
- 頻率：19.2MHz
- 尺寸：2.0×1.6mm
- 應 用： 歐美拉隆晶振,R2016無源晶振,R2016-19.200-10-1010-TR晶振,石英晶體諧振器,SMD晶振,2016mm晶振,超小型晶振,頻率19.2MHz,負載10pF,頻率穩定性10ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G路由器晶振,智能手機晶...
-
-
.jpg)
歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振,歐美拉隆晶振,R2016無源晶振,R2016-19.200-10-1010-TR晶振,石英晶體諧振器,SMD晶振,2016mm晶振,超小型晶振,頻率19.2MHz,負載10pF,頻率穩定性10ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G路由器晶振,智能手機晶振,可穿戴設備晶振,筆記本電腦晶振.
歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振特點：
•緊湊的設計
•精度高
•適合高密度表面安裝
歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振規格表
| 參數 | 數值 |
| 標準頻率 | 19.2MHz |
| 振蕩模式 |
AT CUT, Fundamental
|
| 頻率容差 | 10ppm |
| 頻率穩定性 | 10ppm |
| 工作溫度 | −10~+60°C |
| 儲存溫度 | −40~+85C |
| 老化 | ±5 ppm |
| 負載 | 10pF |
| 并聯電容 | 5.0 pF Max |
| 激勵功率 |
100 µW MAX
|
| 等效串聯電阻 | 180 OHMS MAX |
.jpg)
歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振尺寸圖
| Raltron原廠編碼 | 型號 | 頻率 | 尺寸 | 頻率偏差 | 頻率穩定度 | 負載 | 工作溫度 |
| R2016-16.000-12-1020-TR | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 20 ppm | 12 pF | -10°C~+60°C |
| R2016-16.000-18-3030-EXT-TR | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| R2016-16.000-8-1010-TR-NS1 | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -10°C~+70°C |
| R2016-16.000-9-1010-TR-NS1 | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF | -20°C~+75°C |
| R2016-19.200-10-1010-TR | R2016 | 19.200MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -10°C~+60°C |
| R2016-20.000-10-3030-EXT-TR | R2016 | 20.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 10 pF | -40°C~+85°C |
| R2016-24.000-10-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -10°C~+60°C |
| R2016-24.000-12-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 12 pF | -20°C~+75°C |
| R2016-24.000-18-3030-EXT-TR | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| R2016-24.000-6-1015-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 15 ppm | 6 pF | -30°C~+85°C |
| R2016-24.000-7-1015-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 15 ppm | 7 pF | -30°C~+85°C |
| R2016-24.000-8-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -10°C~+70°C |
| R2016-24.000-9-1010-EXT-TR | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF | -40°C~+85°C |
| R2016-25.000-12-F-3030-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 12 pF | -40°C~+85°C |
| R2016-25.000-16-F-2525-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 25 ppm | ± 25 ppm | 16 pF | -40°C~+85°C |
| R2016-25.000-18-F-3030-TR-NS1 | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF | -20°C~+70°C |
| R2016-25.000-20-F-1515-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 20 pF | -40°C~+85°C |
| R2016-26.000-10-F-1010-TR | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -10°C~+60°C |
| R2016-26.000-6-F-1010-TR | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 6 pF | -10°C~+60°C |
| R2016-26.000-8-F-1010-TR-NS1 | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -20°C~+70°C |
| R2016-26.000-9-F-1010-TR-NS5 | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF | -20°C~+85°C |
| R2016-27.000-10-F-2020-EXT-TR | R2016 | 27.000MHz | 2.0 x 1.6mm | ± 20 ppm | ± 20 ppm | 10 pF | -40°C~+85°C |
| R2016-27.000-8-F-1010-EXT-TR | R2016 | 27.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -40°C~+85°C |
| R2016-27.120-10-F-1010-TR-NS4 | R2016 | 27.120MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -20°C~+75°C |
| R2016-27.120-8-F-1010-EXT-TR | R2016 | 27.120MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -40°C~+85°C |
| R2016-30.000-8-F-1010-TR-NS1 | R2016 | 30.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -25°C~+70°C |
| R2016-32.000-10-F-1020-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 20 ppm | 10 pF | -40°C~+85°C |
| R2016-32.000-12-F-1010-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 12 pF | -40°C~+85°C |
| R2016-32.000-16-F-1010-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 16 pF | -10°C~+60°C |
| R2016-32.000-8-F-1010-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF | -40°C~+85°C |
| R2016-32.000-9-F-1025-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 25 ppm | 9 pF | -40°C~+85°C |
| R2016-32.000-10-F-1010-TR-B1B_RevB | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -30°C~+70°C |
| R2016-38.400-10-F-1010-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF | -10°C~+60°C |
| R2016-38.400-7-F-1010-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 7 pF | -10°C~+60°C |
| R2016-38.400-8-F-1012-EXT-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 12 ppm | 8 pF | -40°C~+85°C |
| R2016-38.400-9-F-1010-TR-NS1 | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF | -30°C~+85°C |
| R2016-40.000-6-F-1010-TR-NS1 | R2016 | 40.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 6 pF | -10°C~+60°C |
| R2016-40.000-8-F-1515-TR-NS1 | R2016 | 40.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 8 pF | -30°C~+85°C |
| R2016-48.000-18-F-1010-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 18 pF | -10°C~+60°C |
| R2016-48.000-6-F-5050-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 50 ppm | ± 50 ppm | 6 pF | -10°C~+60°C |
| R2016-48.000-7-F-0715-TR-NS1 | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 7 ppm | ± 15 ppm | 7 pF | -30°C~+95°C |
| R2016-48.000-8-F-1515-EXT-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 8 pF | -40°C~+85°C |
