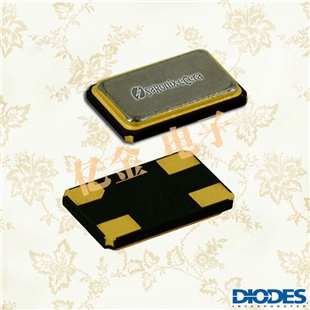

DIODES-FY1020003-10.24M-20PF-30PPM-5032
- 頻率：10.24MHz
- 尺寸：5032mm
- 應 用： DIODES-FY1020003-10.24M-20PF-30PPM-5032，臺灣Diodes晶振，堅固的AT-cut晶體結構微型5.0x3.2mm陶瓷包裝，可卷帶12mm膠帶，1000個單位FY：無鉛和RoHS/綠色兼容F9：RoHS兼容*（*根據#5，指令2002/05/EC附件），2墊F9系...
-
-
.jpg)
DIODES-FY1020003-10.24M-20PF-30PPM-5032，臺灣Diodes晶振，堅固的AT-cut晶體結構微型5.0 x 3.2mm陶瓷包裝，可卷帶12mm膠帶，1000個單位FY：無鉛和RoHS/綠色兼容F9： RoHS兼容*（*根據#5，指令2002/05/EC附件），2墊F9系列玻璃密封和4墊FY系列接縫密封裝置采用標準的5.0 x 3.2mm封裝封裝。這些協議用于PCB應用中的表面安裝，PCMCIA卡，便攜式/手持式個人電腦，筆記本電腦，無線局域網，便攜式多媒體設備，GPS，硬盤，藍牙，USB適配器
DIODES-FY1020003-10.24M-20PF-30PPM-5032
| Parameters | Minimum | Typical | Maximum | Units | |||||||||
| 頻率 | 8.000 | 50.000 | MHz | ||||||||||
| 操作模式 | Fundamental | ||||||||||||
| 工作溫度 | - 10 | +50 | ºC | ||||||||||
| 儲存溫度 | --40 | +85 | ºC | ||||||||||
| 頻率容差 @+25°C | --50 | +50 | ppm | ||||||||||
| 工作溫度下的頻率穩定性 ( ref. to +25°C) | --50 | +50 | ppm | ||||||||||
| 并聯電容 (C0) | 5 | pF | |||||||||||
| 負載電容 (CL) |
8 to 32
|
pF | |||||||||||
| 驅動電平 | 10 | 100 | µW | ||||||||||
| 老化 | --5 | +5 | ppm | ||||||||||
.jpg)
DIODES-FY1020003-10.24M-20PF-30PPM-5032
| DIODES原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | 工作溫度 |
| FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| FY2500117 | Diodes晶振 | FY | 25MHz | ±20ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| FY0800018 | Diodes晶振 | FY | 8MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| FY1000009 | Diodes晶振 | FY | 10MHz | ±30ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| F90800018Q | Diodes晶振 | F9 | 8MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| F90800018Q | Diodes晶振 | F9 | 8MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| F90800018Q | Diodes晶振 | F9 | 8MHz | ±50ppm | ±50ppm | 8pF | -40°C ~ 125°C |
| FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| FY2400053 | Diodes晶振 | FY | 24MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| FY2500016 | Diodes晶振 | FY | 25MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| F92400054 | Diodes晶振 | F9 | 24MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| F92400054 | Diodes晶振 | F9 | 24MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| F92400054 | Diodes晶振 | F9 | 24MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| F92500042 | Diodes晶振 | F9 | 25MHz | ±50ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| F92500042 | Diodes晶振 | F9 | 25MHz | ±50ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| F92500042 | Diodes晶振 | F9 | 25MHz | ±50ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 10pF | -10°C ~ 70°C |
| FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 10pF | -10°C ~ 70°C |
| FY2500068 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 10pF | -10°C ~ 70°C |
| FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| FY2500115 | Diodes晶振 | FY | 25MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
| F90800021 | Diodes晶振 | F9 | 8MHz | ±30ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| F90800021 | Diodes晶振 | F9 | 8MHz | ±30ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| F90800021 | Diodes晶振 | F9 | 8MHz | ±30ppm | ±20ppm | 18pF | -40°C ~ 85°C |
| F91200084 | Diodes晶振 | F9 | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| F91200084 | Diodes晶振 | F9 | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| F91200084 | Diodes晶振 | F9 | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 70°C |
| FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 70°C |
| FY1000020 | Diodes晶振 | FY | 10MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 70°C |
| FY1200011 | Diodes晶振 | FY | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY1200011 | Diodes晶振 | FY | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY1200011 | Diodes晶振 | FY | 12MHz | ±30ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | ±20ppm | 18pF | -20°C ~ 70°C |
| FY0800027 | Diodes晶振 | FY | 8MHz | ±20ppm | ±20ppm | 18pF | -20°C ~ 70°C |
