更多>>CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG
- 頻率：32.768KHz
- 尺寸：3.2×1.5×0.35mm
- 應 用： 歐美進口晶振,Micro Crystal AG,CM7V-T1A 0.3千赫晶體KHZ,無源晶振,CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC晶振,3215mm晶振,SMD晶體,石英晶體諧振器,頻率32.768KHz,負載12.5pF,工作溫度-40~125°C,頻率容差20ppm,...
-
-
CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG,歐美進口晶振,Micro Crystal AG,CM7V-T1A 0.3千赫晶體KHZ,無源晶振,CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC晶振,3215mm晶振,SMD晶體,石英晶體諧振器,頻率32.768KHz,負載12.5pF,工作溫度-40~125°C,頻率容差20ppm,耐高溫晶振,抗沖擊晶振,低老化晶振,工業自動化晶振,導航設備晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振.
CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG特點：
•超低輪廓（最大高度0.35毫米）
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•可擴展工作溫度范圍
•高抗沖擊和抗振動
•100%不含鉛，符合ROHS標準

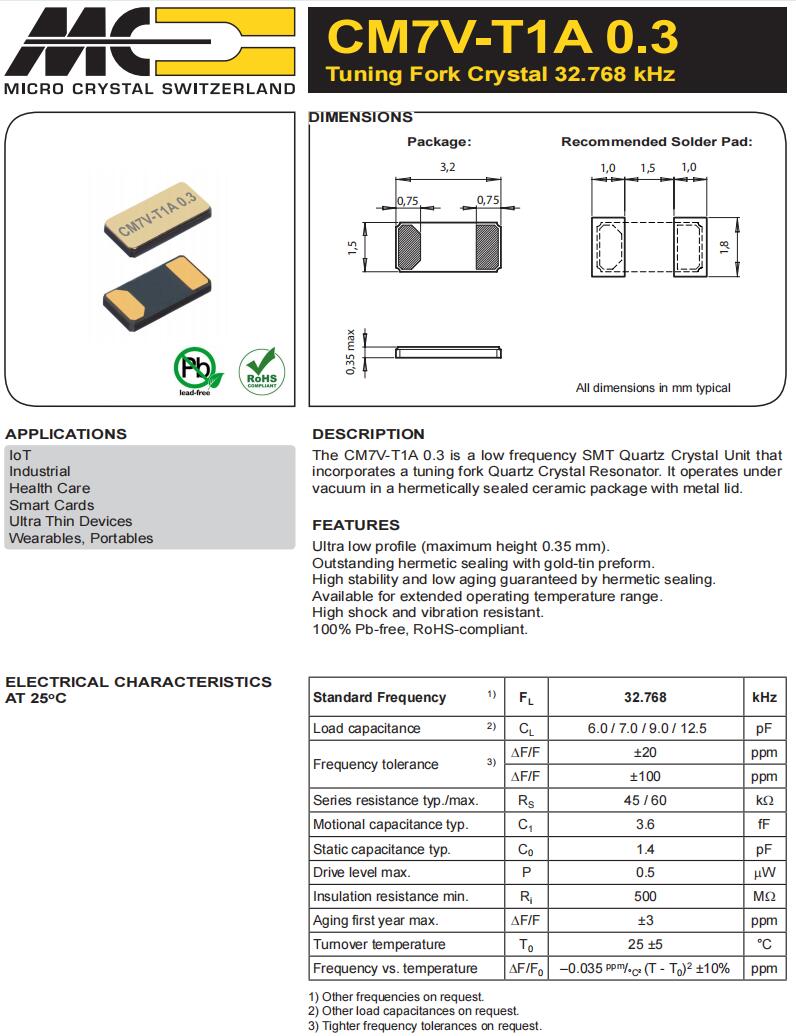

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG規格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 12.5 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 45/60 | kΩ |
|
Motional capacitance typ.
|
C1
|
3.6 |
fF
|
|
Static capacitance typ.
|
C0
|
1.4 |
pF
|
|
Drive level max.
|
P | 0.5 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TB Extended oper. temp. range
|
T_use | −40~+125 | °C |
.jpg)

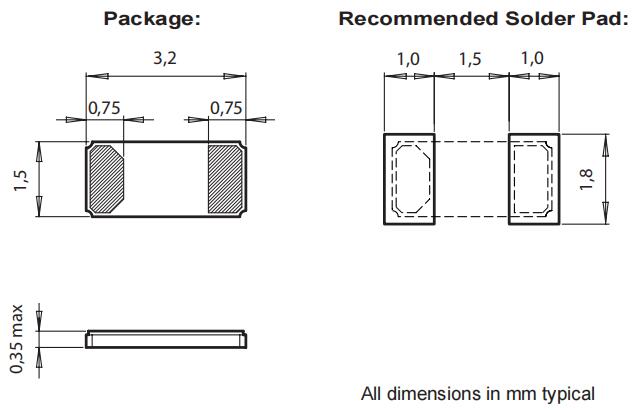

CM7V-T1A-0.3-32.768kHz-12.5pF-20ppm-TB-QC|Micro Crystal AG尺寸圖
